Description:

A flat washer which can be square or circular, with one bearing surface having an oblique angle.



Advantages:

Commonly used when fastening bolts through the flanges of "I" beams.

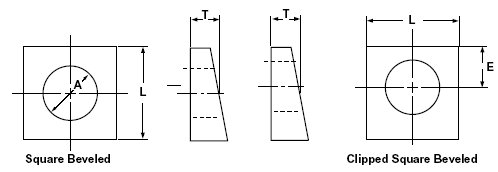

Beveled Washers



HARDENED BEVELED WASHERS ASME B18.2.6-1996
Bolt Size
Inside Diameter - A
L
T
E
Basic
Tolerance
Minimum Side
Length
Thickness
Minimum Edge
Distance
Plus
Minus
1/2
0.500
0.531
0.0313
0
1.750
0.313
0.438
5/8
0.625
0.688
0.0313
0
1.750
0.313
0.547
3/4
0.750
0.813
0.0313
0
1.750
0.313
0.656
7/8
0.875
0.938
0.0313
0
1.750
0.313
0.766
1"
1.000
1.125
0.0313
0
1.750
0.313
0.875
1-1/8
1.125
1.250
0.0313
0
2.250
0.313
0.984
1-1/4
1.250
1.375
0.0313
0
2.250
0.313
1.094
1-3/8
1.375
1.500
0.0313
0
2.250
0.313
1.203
1-1/2
1.500
1.625
0.0313
0
2.250
0.313
1.313



*Product standards require all through-hardened washers 1/4” diameter and larger to bear the insignia identifying its manufacturer. “X” represents one location such an insignia may appear.
